Introduction

Systemic sclerosis (SSc) or scleroderma is a connective tissue disease for which skin tightness is the hallmark. The disease is classified into two major subsets: limited cutaneous systemic sclerosis (lcSSc) and diffuse cutaneous systemic sclerosis (dcSSc) [1]. Fibrosis is a predominant pathological finding in scleroderma and it presents not only in the skin but also in the internal organs such as the kidneys, lungs, heart, and intestines [2–6].

The condition of an SSc patient who has features of connective tissue disease apart from SSc is called SSc overlap syndrome. Systemic sclerosis overlap vasculitis is rare [7] and reports are limited to mostly case reports of anti-neutrophilic cytoplasmic antibody (ANCA) associated vasculitis [8]. Nearly 80% of cases of SSc overlap vasculitis are CREST syndrome, which is also reported in those who have no cutaneous tightness (viz. systemic sclerosis sine scleroderma) [7].

ANCA is subclassified into two immunofluorescence patterns – cytoplasmic ANCA (c-ANCA) and perinuclear ANCA (p-ANCA). Atypical ANCA (a-ANCA) is used when the fluorescence pattern is incompatible with the two classical patterns. c-ANCA is mainly directed against proteinase-3, and if c-ANCA is indicated, the presence of anti-proteinase3 (anti-PR3) is usually used as a confirmatory test. p-ANCA is mainly directed against myeloperoxidase and anti-myeloperoxidase (anti-MPO) is tested for confirmation in case of the presence of p-ANCA [9, 10].

The prevalence of ANCA in SSc is reported to be between 2.4% and 11.7% [11–15]. ANCA is commonly revealed in lcSSc or CREST syndrome [7]. The most common manifestation in SSc was renal involvement, particularly crescentic glomerulonephritis [7]. Other clinical features include massive alveolar hemorrhage [14], normotensive renal failure [15], pulmonary renal syndrome [7], pulmonary hypertension [7], skin purpura [7], digital ulcers [7], severe digital ischemia [16], neuropathy [7], and necrotizing angiitis of the small vessels in multiple internal organs [15]. The data indicate a poor prognosis in patients who had pulmonary-renal syndrome associated with ANCA and the condition has been reported in both dcSSc and lcSSc [7].

Digital ischemia is a well-known feature of vasculopathy in SSc, and particularly lcSSc. There is a report of severe digital ischemia with histologically proven vasculitis in lcSSc positive for ANCA. According to the literature, in cases of refractory digital ischemia, SSc overlap with ANCA-associated vasculitis should be considered [16].

The presence of ANCA in other connective tissue disease has been reported and the clinical association with the presence of the antibody has been investigated [17–24]. However, there has been no study on the association between ANCA and the clinical presentations in SSc and the outcome of SSc patients positive for ANCA. In daily practice, ANCA is not a routine laboratory test but it will be tested for in cases of clinically suspected small vessel vasculitis, particularly rapidly progressive glomerulonephritis and alveolar hemorrhage. Some clinical features of SSc that are likely features of small vessel vasculitis (i.e., digital ulcer, proteinuria with renal failure, and neuropathy) have never been investigated for exclusion of small vessel vasculitis. Moreover, most Thai SSc patients have the dcSSc subset, which is different from Caucasians and some Asians. Our objectives were to (a) determine the prevalence of ANCA among Thais with SSc and (b) find out the clinical associations with its occurrence.

Material and methods

We conducted a cross-sectional study among Thai adult SSc patients, followed up between November 1, 2016 and November 30, 2017, at the Scleroderma Clinic, Srinagarind Hospital, Khon Kaen University, Khon Kaen, Thailand. All of the patients were over 18, had a diagnosis of SSc based on the American College of Rheumatology criteria and/or fulfilled the classification criteria of systemic sclerosis by ACR/EULAR 2013 [25]. Systemic sclerosis was classified as the limited or diffuse type as per LeRoy et al. [26].

All eligible patients underwent a clinical assessment and blood test for all of the following factors that could be clinically associated with ANCA on the same date (date of enrollment).

Operational definitions

Anti-MPO and anti-PR3 were tested using the EUROIMMUN AG (Lübeck, Germany) by the Euro-line immunoblot immunoglobulin G (IgG) technique. ANCA was tested using the EUROIMMUN AG (Lübeck, Germany) by indirect immunofluorescence testing and classified into 2 patterns (p-ANCA and c-ANCA). Antibodies with borderline and weakly positive signal intensities which had a titer less than 1 : 10 were considered negative in the current study.

The onset of disease was considerate the date of first symptoms. The definition of pulmonary fibrosis was fulfilled when interstitial fibrosis was detected by either chest radiography or high resolution computed tomography (HRCT). Pulmonary arterial hypertension (PAH) was defined by a mean pulmonary arterial pressure ≥ 25 mm Hg and a pulmonary capillary wedge pressure < 15 mm Hg from right heart catheterization [27]. Esophageal involvement was defined when any esophageal symptoms of SSc such as esophageal dysphagia, heartburn, or reflux symptoms were revealed. Stomach involvement was defined by the symptom of early satiety or vomiting. Intestinal involvement was determined by the symptoms of diarrhea, bloating, malabsorption, constipation, ileus or pseudo-intestinal obstruction. Renal impairment was indicated when serum creatinine (Cr) was > 1.4 mg/dl. The definition of proteinuria was fulfilled when 24-h urine protein was > 0.5 g/day. Neuropathy was defined when the patient reported symptoms of neuropathy and the neuropathy was confirmed by electrodiagnostic study. Anemia was confirmed when Hb < 12.0 g/dl in females and < 13.0 in males. Baseline comorbid conditions were determined according to the modified version of Elixhauser’s methodology [28].

Results

A total of 185 SSc patients were included with a female to male ratio of 2 : 1, of whom the majority had the dcSSc (71.2%). The mean age was 58.0 ±10.1 years (range: 19.7–84.5). The median duration of disease was 6.4 years (interquartile range (IQR): 2.9–10.1).

Among the 185 patients, 40 presented at least 1 serological test positive for ANCA (p-ANCA, c-ANCA, anti-MPO or anti-PR3) with the prevalence of 21.6% (95% CI: 15.9–28.3). Positive for p-ANCA was the most common type of ANCA detection (12 patients; 30%), followed by positive for anti-PR3 (10 patients; 25%) and positive for anti-MPO (7 patients; 17.5%), respectively (Figure 1). Among those who had a serological test positive for ANCA, 22 were positive for either p-ANCA or c-ANCA, and 24 were positive for either anti-MPO or anti-PR3 with the respective prevalence of 11.9% (95% CI: 7.6–17.4) and 13.0% (95% CI: 8.5–18.7). The presence of p-ANCA and anti-MPO was revealed in 2 patients with the prevalence of 1% (95% CI: 0.1–3.9) and the presence of c-ANCA and anti-PR3 was found in 2 patients with the prevalence of 1% (95% CI: 0.1–3.9). None of these patients had clinical features of systemic vasculitis.

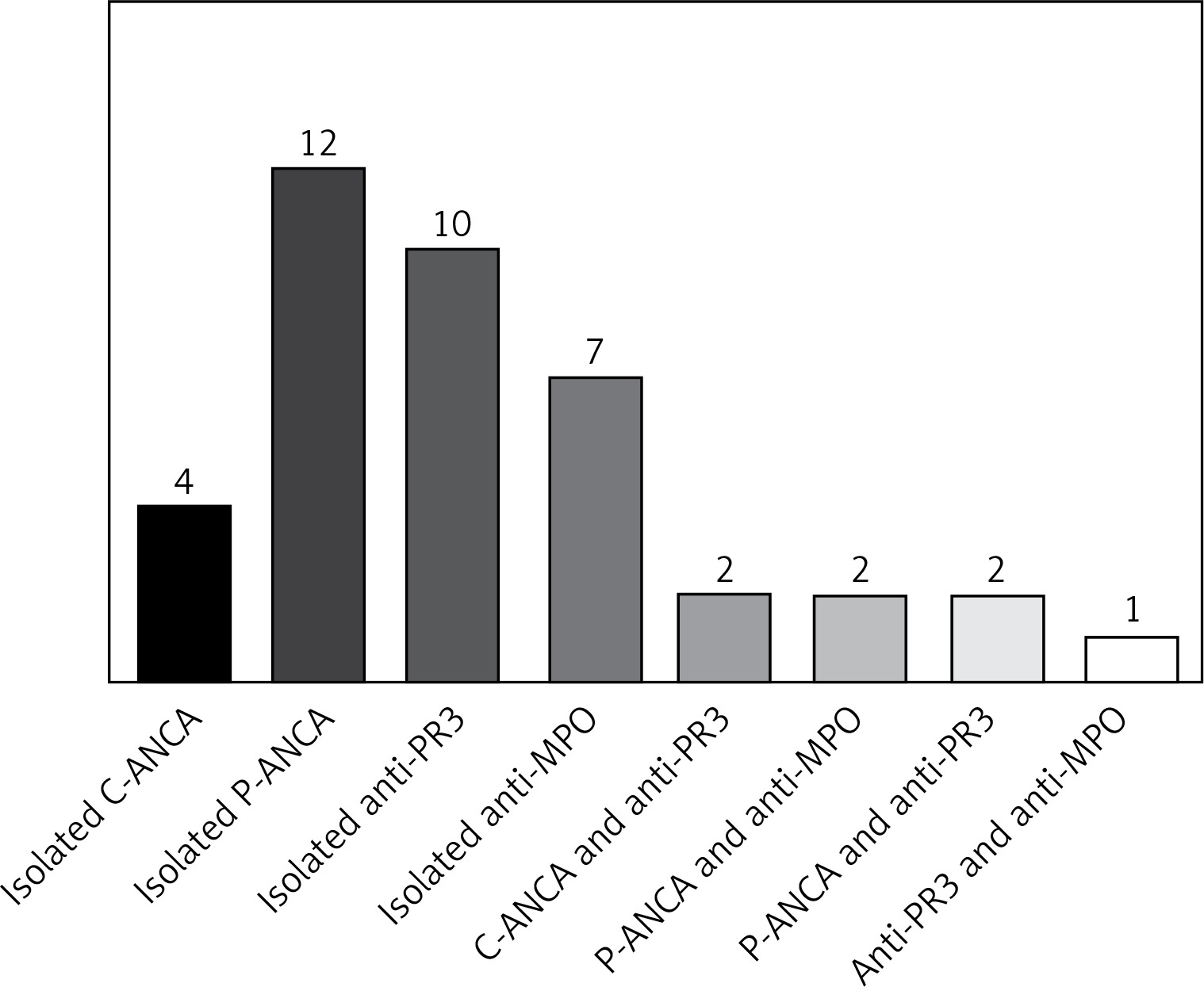

Figure 1

The number of patients in each serological test

The respective presence of ATA, elevated ESR, and weight loss at the onset was associated with the presence of at least 1 serological test positive for ANCA according to the univariate analysis, but only ESR elevation was significantly associated with the presence of the antibody with an odds ratio (OR) of 11.36 (95% CI: 1.44–83.65). The other SSc manifestations and clinical features indicative of small vessel vasculitis (viz., digital ulcer, proteinuria and neuropathy) were not associated with the presence of the antibodies (Table I). Among those who had proteinuria during follow-up, 9 patients had urine protein > 0.5 g/day, in 5 of whom it was due to diabetic nephropathy and in 1 to a scleroderma renal crisis. The remaining patients had non-nephrotic range proteinuria and no urine sediment. None of the patients underwent kidney biopsy. The median proteinuria was 1.26 g/day (IQR: 0.71–2.35).

Telangiectasia and muscle weakness at follow-up was significantly associated with the presence of either anti-MPO or anti-PR3; according to both univariate and logistic regression analysis (OR = 0.25, 95% CI: 0.07–0.93 and OR = 7.97, 95% CI: 1.75–36.42, respectively). Elevated level of hs-cTnT was the only variable significantly associated with the presence of either p-ANCA or c-ANCA among our SSc patients (OR = 4.25, 95% CI: 1.41–15.34) (Table I).

After subgroup analysis, there was no clinical difference between the patients who were positive for p-ANCA and anti-MPO and also between those who were positive for c-ANCA and anti-PR3.

Discussion

The prevalence of ANCA positivity among our SSc patients is comparable to previous reports (i.e., 2.4–11.7%) [11–15, 31] Although the dcSSc subset is common among Thai patients, the prevalence of ANCA positivity was not different between dcSSc and lcSSc subsets, like the result from the previous study that revealed ANCA positivity in both dcSSc and lcSSc subsets [7, 13, 32]. According to our analysis, erythrocyte sedimentation rate elevation, rise of hs-cTnT, telangiectasia and muscle weakness were associated with the presence of ANCA in Thai SSc, whereas the study of Rho et al. found an association between anti-topoisomerase I antibody and the occurrence of ANCA-associated vasculitis [32]. However, most of the studies did not find a clinical association with the presence of ANCA (Table II).

According to the multivariate analysis, hs-cTnT was the parameter associated with the presence of either p-ANCA or c-ANCA. hs-cTnT is a cardiac marker of myocardial injury and it has a high sensitivity and negative predictive value for diagnosis of acute myocardial injury [33]. Of note, 48% of our patients had elevated hs-cTnT and none had clinically suggested myocardial infarction or other causes of rise of hs-cTnT. A large cohort from Italy showed that the prevalence of positivity for ANCA among SSc patients was 5.8%, among whom 65% were positive for p-ANCA. The patients who were ANCA positive had a significantly higher incidence of myocardial inflammation and mortality rate than those who were ANCA negative [34]. The study, however, was not published, so the patients’ clinical characteristics and details of the study have not been fully reported. According to another study, 37% of SSc patients in WHO functional class (FC) I had elevated hs-cTnT without any cardiac symptoms. The authors found that there was no correlation between inflammatory markers and the elevation of hs-cTnT [35]. The primary mechanism of myocardial injury among SSc patients is thus probably not due to inflammation. Elevated hs-cTnT might be a marker of abnormal myocardial microcirculation leading to focal myocardial ischemia and finally myocardial fibrosis [36]. The association between ANCA and elevated of hs-cTnT remains uncertain. ANCA would be a marker of either vasculopathy or vasculitis of the myocardial small vessel in SSc patients. Myocardial and/or myocardial vessel biopsy could be helpful for confirmation of the association; however, it is difficult to obtain proof because of the invasive procedure. We suggest performing serial hs-cTnT and long-term clinical follow-up in cases of ANCA positivity in order to determine the progression of cardiac involvement and the development of clinical vasculitis.

Although hs-cTnT was associated with the presence of either p-ANCA or c-ANCA and ESR was associated with the presence of either anti-MPO or anti-PR3, no SSc clinical features or overlap clinical features were found between SSc and systemic vasculitis (i.e., digital ulcer, neuropathy, proteinuria) associated with the presence of ANCA. None of our patients had clinical signs suggestive of systemic vasculitis despite being positive for both p-ANCA and anti-MPO or positive for both c-ANCA and anti-PR3. As in a previous study, ANCA has been reported in SSc patients who had no clinical vasculitis [14]. The SSc patients who had no clinical features of vasculitis were often anti-MPO positive but negative for p-ANCA [14]. Some authors suggested that anti-MPO might be a false positive in SSc or might indicate polyclonal activation, so it might not be a pathologic antibody in SSc [14]. As with a previous study, we also found that clinical features such as digital ulcers, glomerulonephritis and myositis were not different between those who were positive and negative for ANCA [34]. Thus, ANCA seems to be a non-specific autoantibody in pure SSc as anti-Ro52 is in SSc [37]. According to our results and the low prevalence of SSc overlap systemic vasculitis [38], ANCA should not be routinely investigated in SSc patients; however, we suggest testing for ANCA in cases of clinically suggestive clinical vasculitis or refractory digital ischemia/ulcer.

All of the patients who had cancer after diagnosis of SSc (4 patients) were negative for ANCA. The ANCA seems to be a protective factor against cancer in SSc but confidence in the statistical analysis was limited because one cell was zero. We suggest a longitudinal follow-up among those who were negative for ANCA. The analysis should also include non-SSc patients who had cancer in order to determine the association between cancer and the presence of ANCA.

Glomerulonephritis is a clinical feature of ANCA-associated vasculitis and it should be differentiated from scleroderma renal crisis, which is a common renal complication in SSc. ANCA-associated glomerulonephritis always has normal renin levels and histopathological findings of the presence of pauci-immune crescentic glomerulonephritis with the absence of vascular changes while the scleroderma renal crisis always has increase of renin level, hypertension and vasculopathy from renal histopathological findings [39]. The patient who was diagnosed with SSc overlap ANCA-associated glomerulonephritis would benefit from treatment with a high dose of steroid and immunosuppressant. Kidney biopsy and testing for ANCA should be performed in SSc patients who have normotensive renal failure. Since none of our patients had clinical features of glomerulonephritis and none of those with proteinuria had undergone kidney biopsy, we cannot be sure whether our patients had occult glomerulonephritis or renal involvement in SSc or not.

Our study had a few limitations. First, no patient was diagnosed with scleroderma-overlap systemic vasculitis, leading to limitations in the power of the statistical analyses. Second, we did not explore the nature of rising serum creatinine by kidney biopsy because the patients had no clinical features of glomerulonephritis, so we could not ascertain the cause of renal impairment in those patients. Third, there were missing data of some clinical features at the onset of the disease; however, there were only a few missing data, so it only slightly affected the statistical analysis. The strengths of our study were: (a) inclusion of the correct number of patients according to sample size calculation, thus validating the prevalence of having SSc and being ANCA positive; and (b) inclusion of parameters of interest, particularly clinical features that might overlap between SSc and systemic vasculitis, cardiac enzyme, and inflammatory markers, revealing the possible role of ANCA testing in SSc. These preliminary data, moreover, have value for evaluating the presence of ANCA in SSc patients and the findings could provide insights into giving patients better care and planning future studies.

In conclusion, around one-fifth of SSc patients have detectible ANCA without any features of vasculitis. The presence of ANCA is associated with inflammation and myocardial injury. ANCA is not antibody specific for vasculitis in SSc. Long-term follow-up is needed to elucidate the clinical implications.
